- Information from the control and indicating equipment meeting standard EN 54-2
- Information from the control and indicating equipment (CIE) with regards to outputs to C, meeting standard
- Information from the control and indicating equipment with regards to outputs to G, meeting standard
- Signalling tests
- Audible signal mute; Control of the control and indicating equipment from the repeater panel
- Audible signal mute; Control of the repeater panel from the control and indicating equipment
- Zone in fire alarm; Repeats the zone in alarm from the control and indicating equipment with regard to outputs to C
- Manual control CIE reset to reset from the fire alarm condition.
- “FD” function for the fire detection: Disablement, Test, Pre alarm, Technical alarm
- “EVAC”function for the evacuation alarm: Disablement, Activation, Fault
- “FS” function for the fire safety: Activation, Fault, Disablement
- Power source fault reporting: Mains fault and Battery fault
Products fire alarm systems

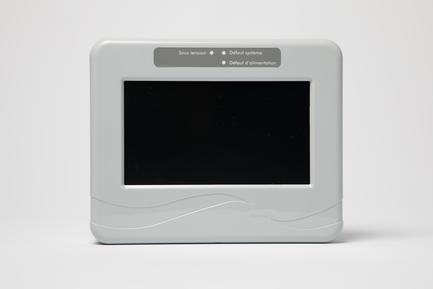

DC520 Repeater panel
The DC 520 REP-TS is an addressable repeater panel providing clear and
concise information and operation of the control and indicating equipment
(CIE) for the fire and safety functions of the system.
Depending on the programmed configuration the DC 520 REP-TS can
manage information including the fire detection system, the evacuation and
alarm system and the fire safety system.
The 7" colour touch screen provides a simple and clear operating view.
Art-Nr.: DC-520-REP-TS | 7" touch screen repeater TR-Bus
documents
-
Additional information and downloads on our products and services are available in the protected website area. A one-time registration is necessary to receive the
A one-time registration is necessary to receive the personal login data .
Product Information
Technical Specifications
| Supply Voltage | 16 to 60 V DC |
| Quiescent Current | 25 mA @24 V DC |
| Alarm Current | 124 mA @24 V DC |
| Operating Temperature | -5°C to +40°C |
| Humidity | 93 % |
| Protection Class | IP 31 |
| Dimensions (H x W x D) | 170 x 210 x 40 mm |
| Weight | 600 g |
| Material | PVC |
| Color | Grey RAL7035 |
